Overview of the eXo Platform IDE

eXo IDE is an online development environment inside eXo Platform, with a friendly interface developer that can easily code, deploy and run applications directly from their Platform, from writing Javascript, CSS, XML to deploying REST Services, Data Object.

eXo IDE offers:

  • Remote File System through the Virtual File System, including Browsing, File Locking, File Searching and Versioning
  • Code Editor with syntax highlighting for many popular languages and advanced features, such as Code Auto-complete, Code Outline and WYSIWYG Editor for HTML
  • Multiple programming and descriptive languages support, such as JavaScript, HTML, XML, CSS, Groovy, and more
  • Tools for developing client side applications including technologies such as Netvibes Widgets, Google Gadgets and Groovy Templates
  • Development of server-side applications, running, and interaction with the client side via REST Service

This tutorial teaches you how to install the IDE extension from the Platform Enterprise Edition bundle, begin with a basic REST services, then an advance REST services from Forum’s services methods.

Requirement:
– Platform 4 Enterprise Edition

Installing the eXo Platform IDE

First, let’s install IDE extension with comand ./extension.sh -i ide (in Linux, Mac) or extension.bat -i ide (in Windows).

annb:platform-4> ./extension.sh -i ide
 # ===============================
 # eXo Platform Extensions Manager
 # ===============================

Installing ide extension ...
     [copy] Copying 6 files to /home/annb/platform-4/lib
     [copy] Copying /home/annb/platform-4/extensions/ide/lib/exo-ide-extension-chromattic-server-1.3.x-SNAPSHOT.jar to /home/annb/platform-4/lib/exo-ide-extension-chromattic-server-1.3.x-SNAPSHOT.jar
...
...
     [copy] Copying /home/annb/platform-4/extensions/ide/webapps/ide-extension.war to /home/annb/platform-4/webapps/ide-extension.war
Done.

 # ===============================
 # Extension ide installed.
 # ===============================
annb:platform-4>

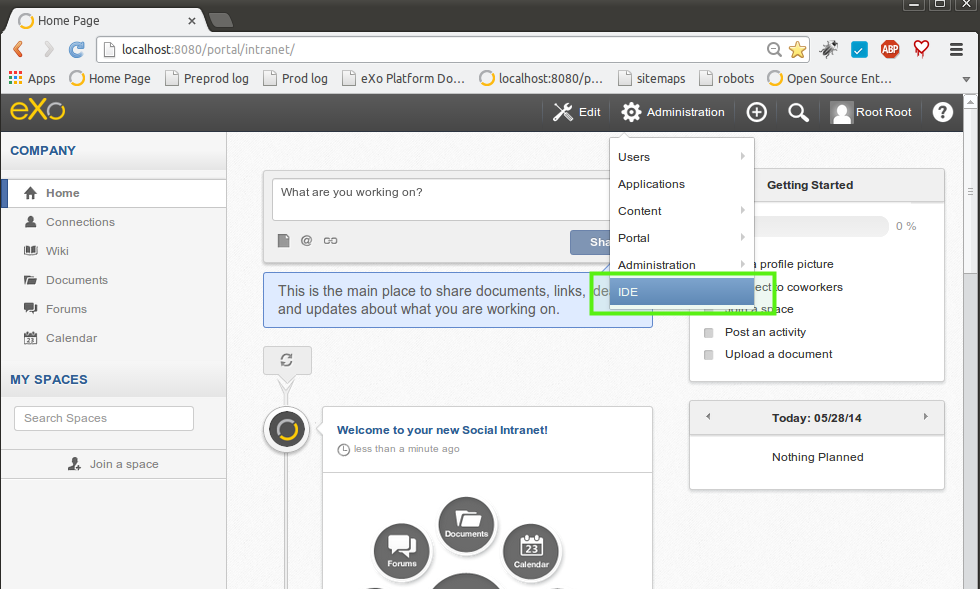

Then start Platform with ./start_eXo.sh, in top menu Administration > IDE is installed

annb:platform-4> ./start_eXo.sh

01-IDE-Platform

Basic Actions with REST services

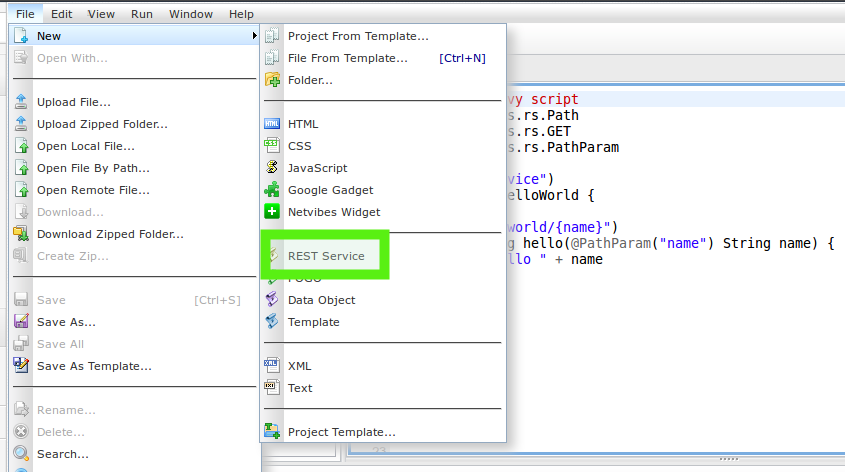

Inside the IDE interface, when you first make a new REST service, a new untitled file groovy script “grs” will create a hello world sample code

02-Rest-Services

@GET
@Path("helloworld/{name}")
public String hello(@PathParam("name") String name) {
   return "Hello my " + name
}

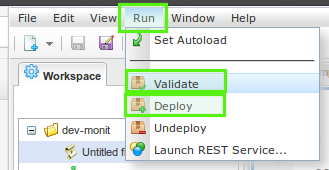

Then you go to Run > Validate

Output displays a successful validation

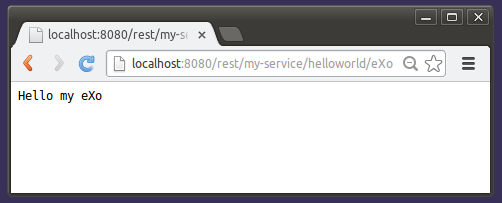

Run > Deploy to deploy directly in Platform’s server with my localhost:8080 and call parameter “eXo”, I can execute REST service /rest/my-service/helloworld/eXo

03-Run-Validate-Deploy

04-HelloWorld

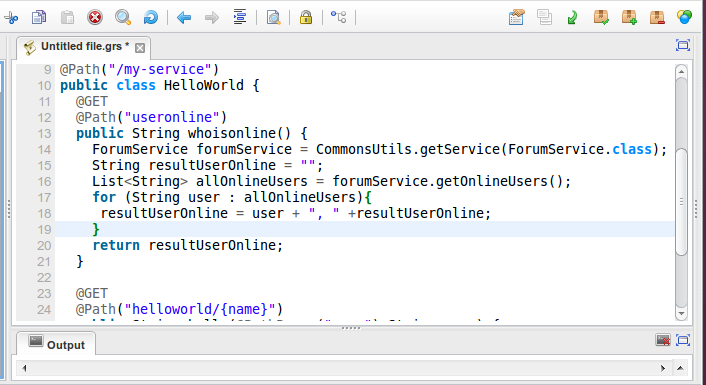

We can go deeper with REST service. Here in advance sample, I use mainly Forum source codes to display which user is online.

You copy this code into your current groovy script.

– Who is online sample:

import org.exoplatform.forum.service.ForumService;
import org.exoplatform.commons.utils.CommonsUtils;

…
…

  @GET
  @Path("useronline")
  public String whoisonline() {
    ForumService forumService = CommonsUtils.getService(ForumService.class);
    String resultUserOnline = "";
    List<String> allOnlineUsers = forumService.getOnlineUsers();
    for (String user : allOnlineUsers){
     resultUserOnline = user + ", " +resultUserOnline;
    }
    return resultUserOnline;
  }

For the full source, you can use the links below in reference: https://github.com/exo-addons/resource-center/blob/master/ide-rest-gadget/basic/sample.grs

For more detail about the method to get online users, internal services, you can search in github sources: https://github.com/exoplatform/forum/

05-Code

Save > Run > Validate

Run > Deploy

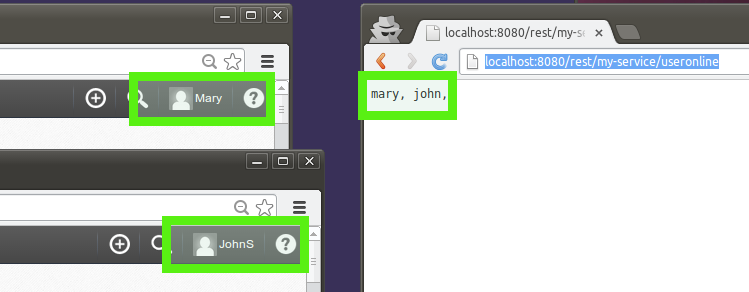

Login with 2 users: root and john in two different browsers

Then call REST: /rest/my-service/useronline

06-Users

Gadgets and REST services with the eXo Platform IDE

In this example, you will learn how to use a REST service (deployed with eXo IDE) from a gadget: create, deploy, run, import, and finally display it on a home page.

Source files: https://github.com/exo-addons/resource-center/tree/master/ide-rest-gadget/gadget

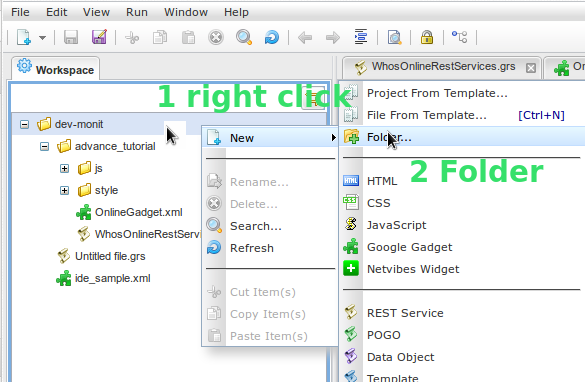

1) Create a hierarchy folder and copy these files:

07-folder

Right click on dev-monit to create a subfolder name advance_tutorial

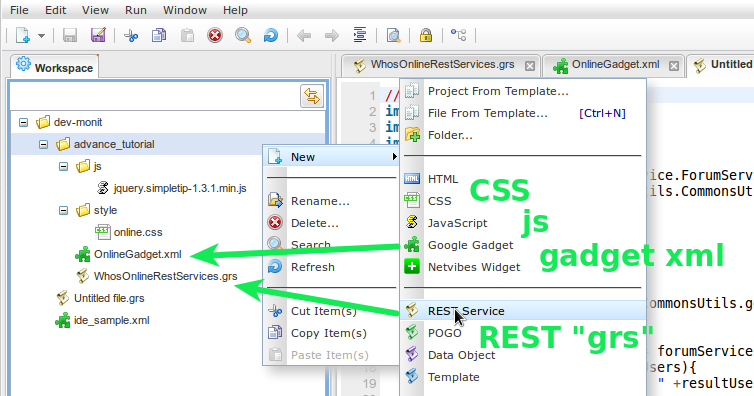

In folder advance_tutorial, create sub folders js (contains javascript), style (contains CSS) then create Google Gadget, REST Service, CSS and Javascript files.

08-js-style

Hierarchy presentation:

advance_tutorial
js
jquery.simpletip-1.3.1.min.js
style
online.css
OnlineGadget.xml
WhosOnlineRestServices.grs (groovy script)

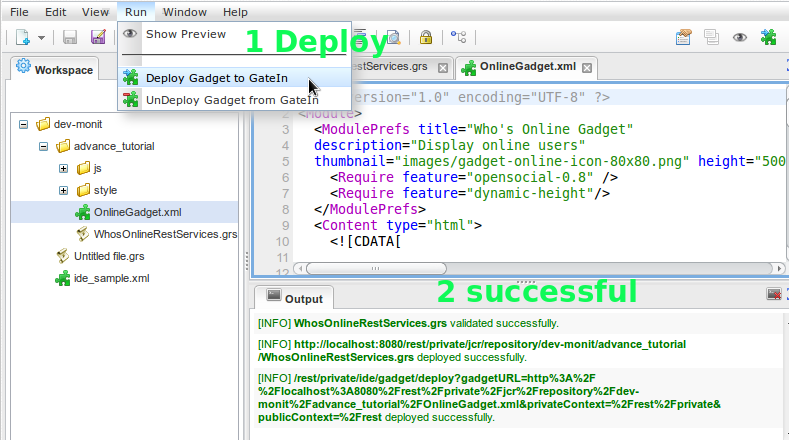

2) Run, validate and deploy your WhosOnlineRestServices and OnlineGadget

09-deploy-successful

Console output

WhosOnlineRestServices

[INFO] WhosOnlineRestServices.grs validated successfully.

[INFO] /rest/private/jcr/repository/dev-monit/advance_tutorial/WhosOnlineRestServices.grs deployed successfully.

OnlineGadget

[INFO] /rest/private/ide/gadget/deploy?gadgetURL=http%3A%2F%2Flocalhost%3A8080%2Frest%2Fprivate%2Fjcr%2Frepository%2Fdev-monit%2Fadvance_tutorial%2FOnlineGadget.xml&privateContext=%2Frest%2Fprivate&publicContext=%2Frest deployed successfully.

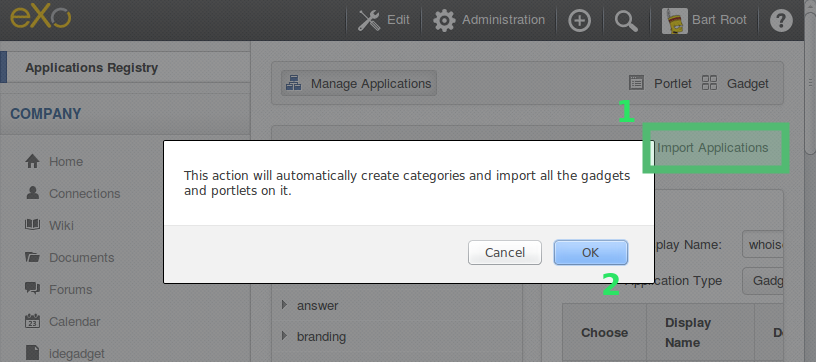

3) Import your gadget: Administration > Application > Import Applications

10-import-app

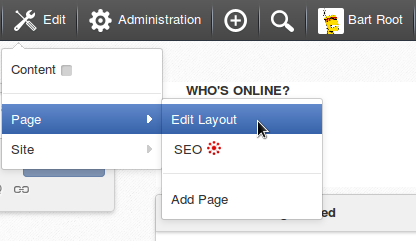

4) Add your gadget on the homepage: Go to home page > Edit > Page > Edit layout

11-edit-layout

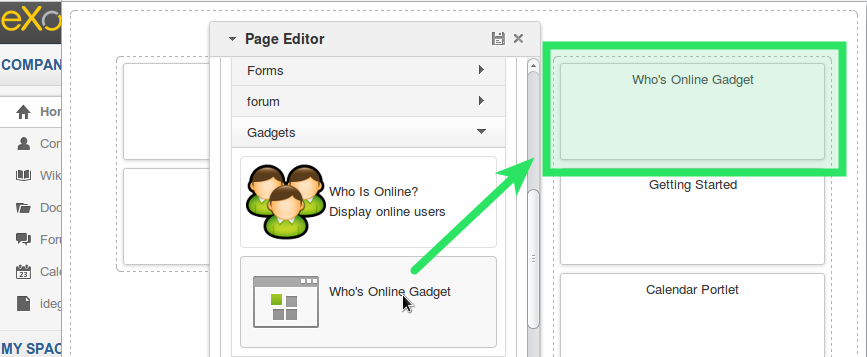

Add your “Who’s Online Gadget at the top,” then save it

12-add-gadget

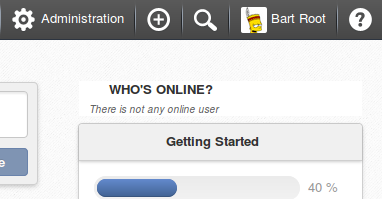

5) After that, your gadget is displayed in the home page

13-home-display

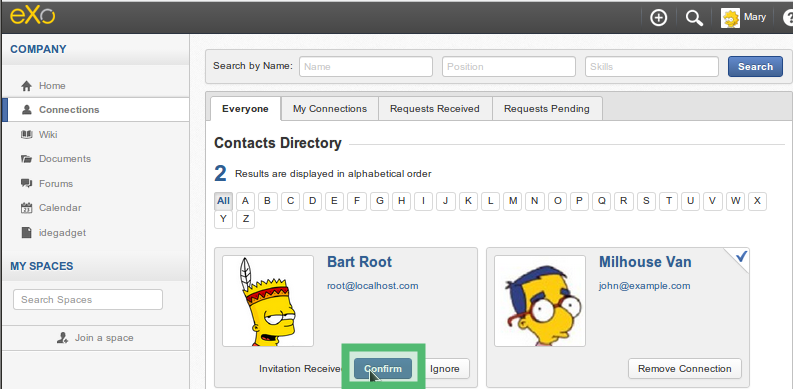

6) Invite some users and accept connection!

14-invite-confirm

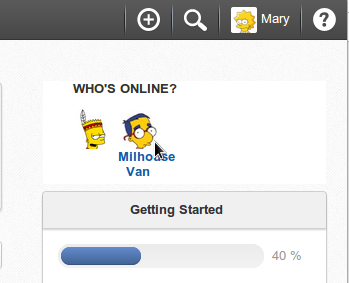

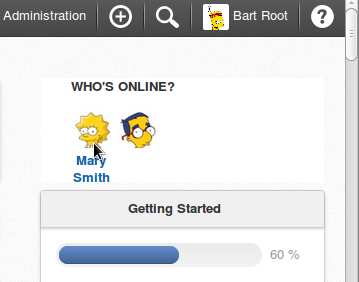

7) Your gadget will display your friends’ connections when they are online

15-gadget-display

16-gadget-display

References:

– Download Platform 4: https://community.exoplatform.com > eXo Platform 4.0 > Downloads

– IDE documentation: https://docs.exoplatform.org/

– Forum sources: https://github.com/exoplatform/forum

– For more resources on IDE, you can follow these guides:
– How to Build, Debug and Deploy Apps for Google App Engine with Cloud IDE
How to Build a Mashup of Twitter and Flickr Feeds Using eXo Cloud IDE

– Full source of basic action: https://github.com/exo-addons/resource-center/blob/master/ide-rest-gadget/basic/sample.grs

– Full source of gadget “Who is online”: https://github.com/exo-addons/resource-center/tree/master/ide-rest-gadget/gadget
